At its heart, the DEORE group is a single chainring, 1x12 drivetrain. The Micro Spline hub interface allows for the huge 10-51 range all-steel cassette, which now features Hyperglide+ shifting ramps. In conjunction with a revamped chain, this offers super smooth and rapid shifting, both up and down. The RapidFire Plus shifter enables a two-way release for your gears. Up front, the rigid crankset’s chainring can be changed via direct mount, making for easy alterations of your setup. Further improvements ensure a superb chain retention, with the Dynamic Chain Engagement+ at its core. The derailleur clutch keeps the chain secure whilst the tooth profiles of the chainring combined with the refined chain chamfering and the large, 13-tooth pulley wheels keeps it quiet.

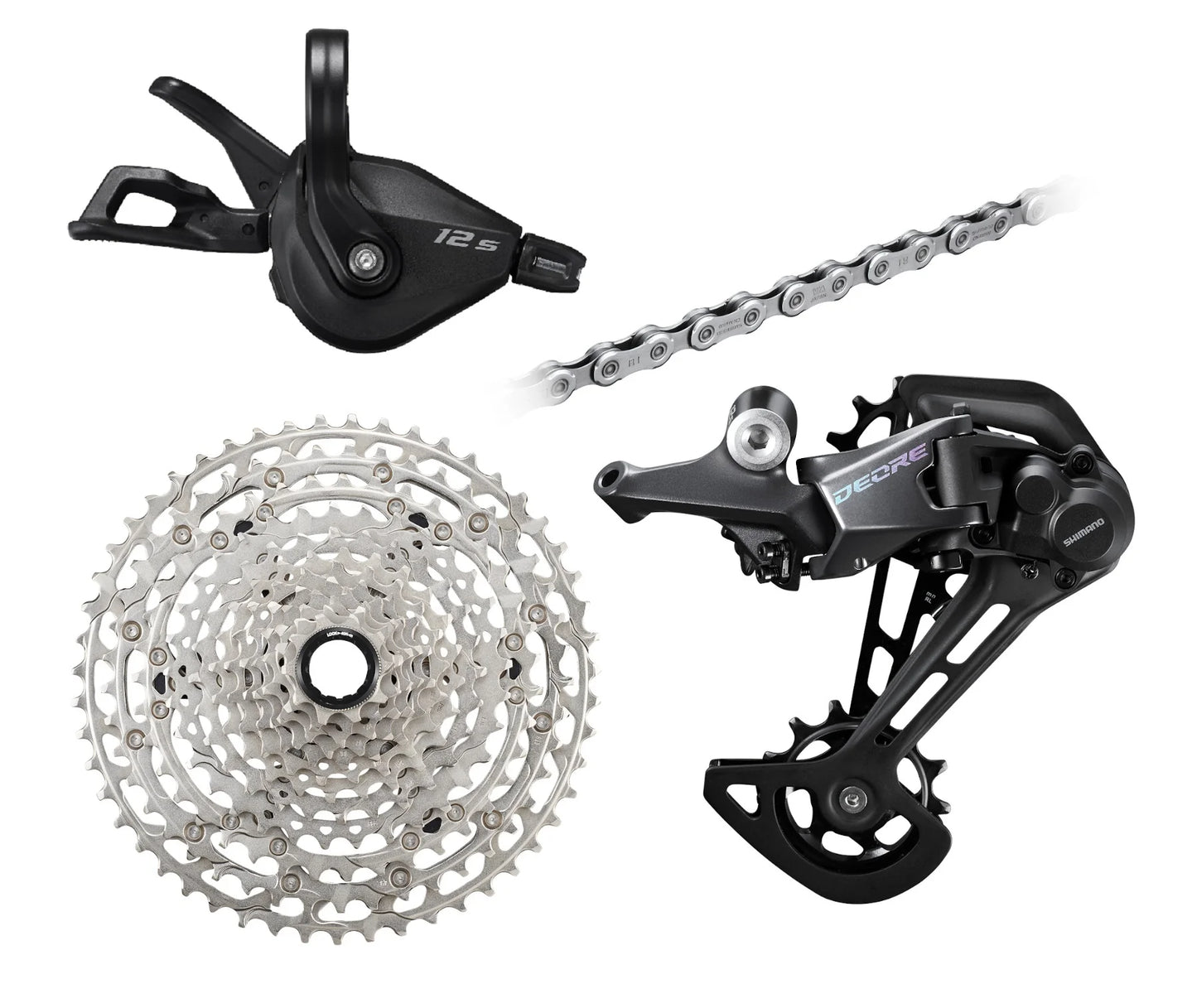

What's Included - Shimano DEORE M6100 1x12-speed Upgrade-Kit 10-51
- DEORE SL-M6100 12-speed Shift Lever with Clamp right (no shifter housing included. Purchase here)
- DEORE RD-M6100 12-speed Rear Derailleur SGS
- DEORE CS-M6100 12-speed Cassette 10-51
- DEORE CN-M6100 12-speed Chain 126 Links with Quick-Link
The Shimano DEORE SL-M6100 12-speed Rapidfire Plus shift lever features a lightweight, ergonomic and compact design. In addition to the shifting behavior, the performance also increases. With 20 % quicker lever access time and 35 % less force. The DEORE 12-speed right-side shifter benefits from the same technologies as XTR, DEORE XT and SLX. This offers you greater ergonomic adjustments so you can tailor your handlebar con-trols much more to your liking. Together with the speed of RAPIDFIRE PLUS and a TWO-WAY RE-LEASE feature you can shift up and down the 12 gears of your cassette faster than ever before.
The Shimano DEORE RD-M6100 1x12-speed rear derailleur for 10-51 cassette features an elegant yet aggressive angled design. The derailleurs feature bigger 13-tooth pulleys and include Shimano’s proven Shadow RD+ low profile technology.
The Shimano CS-M6100 is the suitable cassette for new DEORE 12-speed group. HYPERGLIDE+ drivetrain’s redesigned cassette and chain promotes the next generation of MTB riding by enhancing speed, shifting efficiency and smoothness over any terrain. The DEORE 12-speed MICROSPLINE cassette is made from 12 durable steel sprockets and comes in a 10-51T gear ratio. Complete with the unmatched shifting quality of Hyperglide+ technology you can shift both up and down this cassette under load, making DEORE shifting smoother than ever before.
The special design of the new Shimano DEORE CN-M6100 12-speed chain ensures improved shifting performance and smoother running - even in rough terrain. The SM-CN910-12 Quick-Link closure, which is also new, makes installation easy.
Features - Shimano DEORE SL-M6100 Clamp 12-speed Shift Lever right Rapidfire Plus
- 20% quicker lever access time
- Compact design and lightweight
- Quicker lever access and light operation force maintains rider concentration
- Greater flexibility and action-optimized cockpit layout
- 2-WAY RELEASE for instant push/pull movements
- Shifter cable included. Housing not included (purchase here)
Product features
-
Use: MTB
-
Group: DEORE M6100
-
Model: SL-M6100-R
-
Shifter Type: Rapidfire Plus
-
Mounting: Clamp
-
Gear rear: 12-speed
-
Optical Gear Display: No
-
Instant Release: No
-
Multi Release: No
-
2-Way Release: Yes
-
Cable adjust: Yes
Material
-
Main lever body: Aluminum Painted
-
Lever body: Aluminium, GFRP
Features - Shimano DEORE RD-M6100 1x12-speed Rear Derailleur
-
Shadow RD+ For optimal chain retention
-
RD-M6100-SGS
- 51T max cog size
- Works with 12-speed 10-51 teeth cassettes
-
Pulley size with 13T increased for reduced friction
Product features
-
Use: MTB
-
Group: DEORE M6100
-
Model: RD-M6100
-
Mount: Direct Mount
-
Technology: Shadow RD+
-
Gradations: SGS-Type 1x12-speed (10-51 cassette)
-
Compatible chain: CN-M6100 12-speed
-
Max. teeth large sprocket: 51T
-
Min. teeth large sprocket: 45T
-
Max. teeth small sprocket: 10T
-
Min. teeth small sprocket: 10T
-
Max. Front Difference: 0T
-
Total Capacity: 41T
Pulley cage
Material
- Aluminum
- GFRP
- Stainless steel
- Steel
Features - Shimano DEORE CS-M6100 12-speed Cassette 10-51
-
Hyperglide+ quicker shifting
-
Material Aluminium & steel
-
BEAM SPIDER construction Increased acceleration
-
MICRO SPLINE 10T lowest sprocket realized by new FREEHUB body construction
-
Compatibility 1x chainring systems
Product features
-
Use: MTB
-
Group: DEORE M6100
-
Model: CS-M6100-12
-
Type: Hyperglide+
-
Gear: 1x12-speed
-
Compatible chain: CN-M6100 12-speed
Gradation
-
10-51 (10-12-14-16-18-21-24-28-33-39-45-51 teeth)
Material
Features - Shimano DEORE CN-M6100 12-speed Chain 126 Links with Quick-Link SM-CN910-12
- New Drive System Dedicated Design Chain
- Greater chain retention to extend portion on the end of inner plate to firmly hold the tooth both front and cassette sprocket
- Enhancements to shifting performance
- Easy connect
- Smoother driving even over bumpy terrain
- Compatible with new generation of drive train
- Quick-Link (SM-CN910-12)
- Quick-Link connecting & removing pliers (TL-CN10) - Not included!
Product features
-
Use: MTB, E-Bike
-
Group: DEORE M6100
-
Model: CN-M6100
-
Gear front: 1/2-speed
-
Gear rear: 12-speed
-
Type: HG
-
Hollow Pin: No
-
Roller Link Plate: SIL-TEC
-
Connector: Quick-Link SM-CN910-12
Compatibility
- DEORE M6100
- SLX M7100
- XT M8100
- XTR M9100
- 12-speed E-Bike
